Geared motor/Gear Reducer

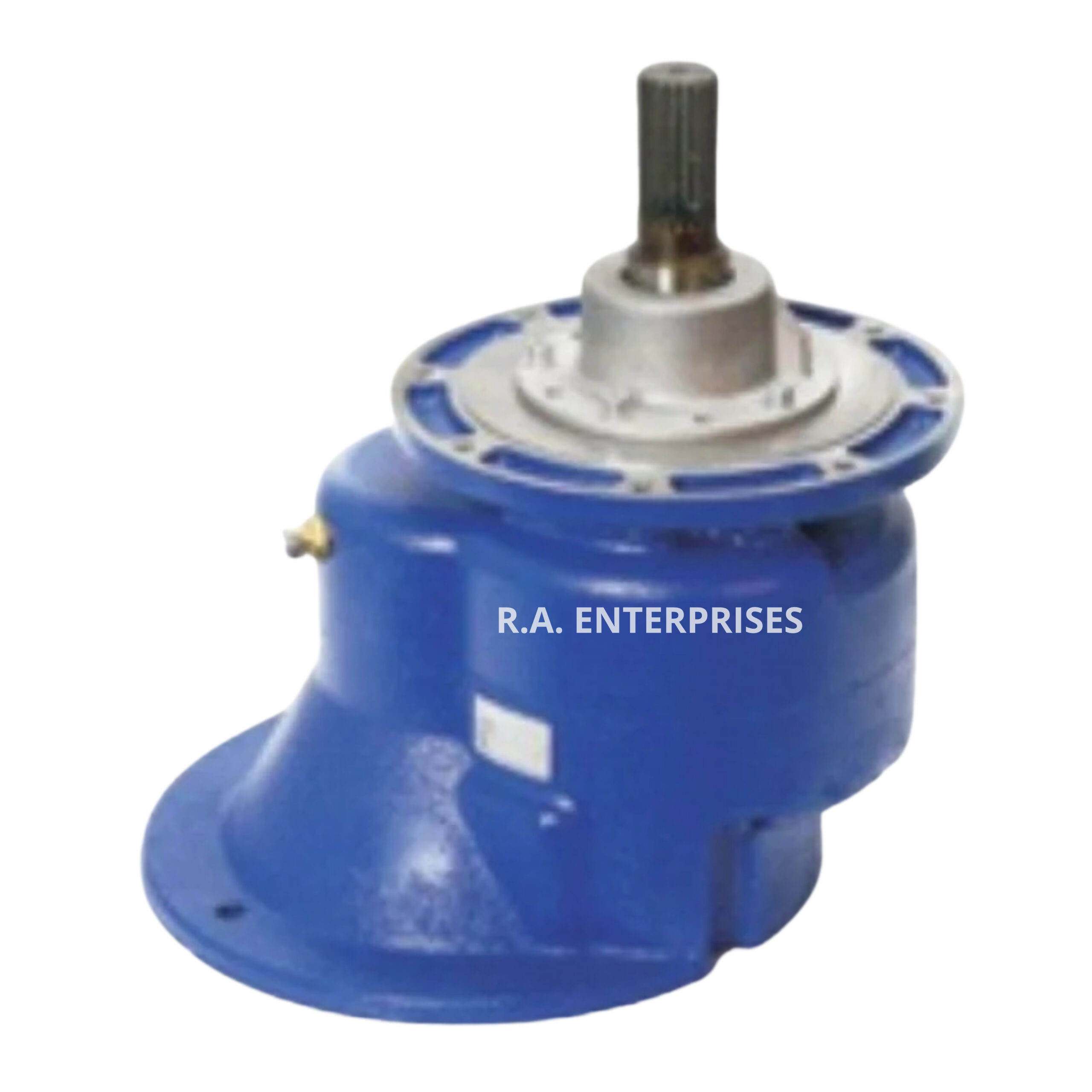

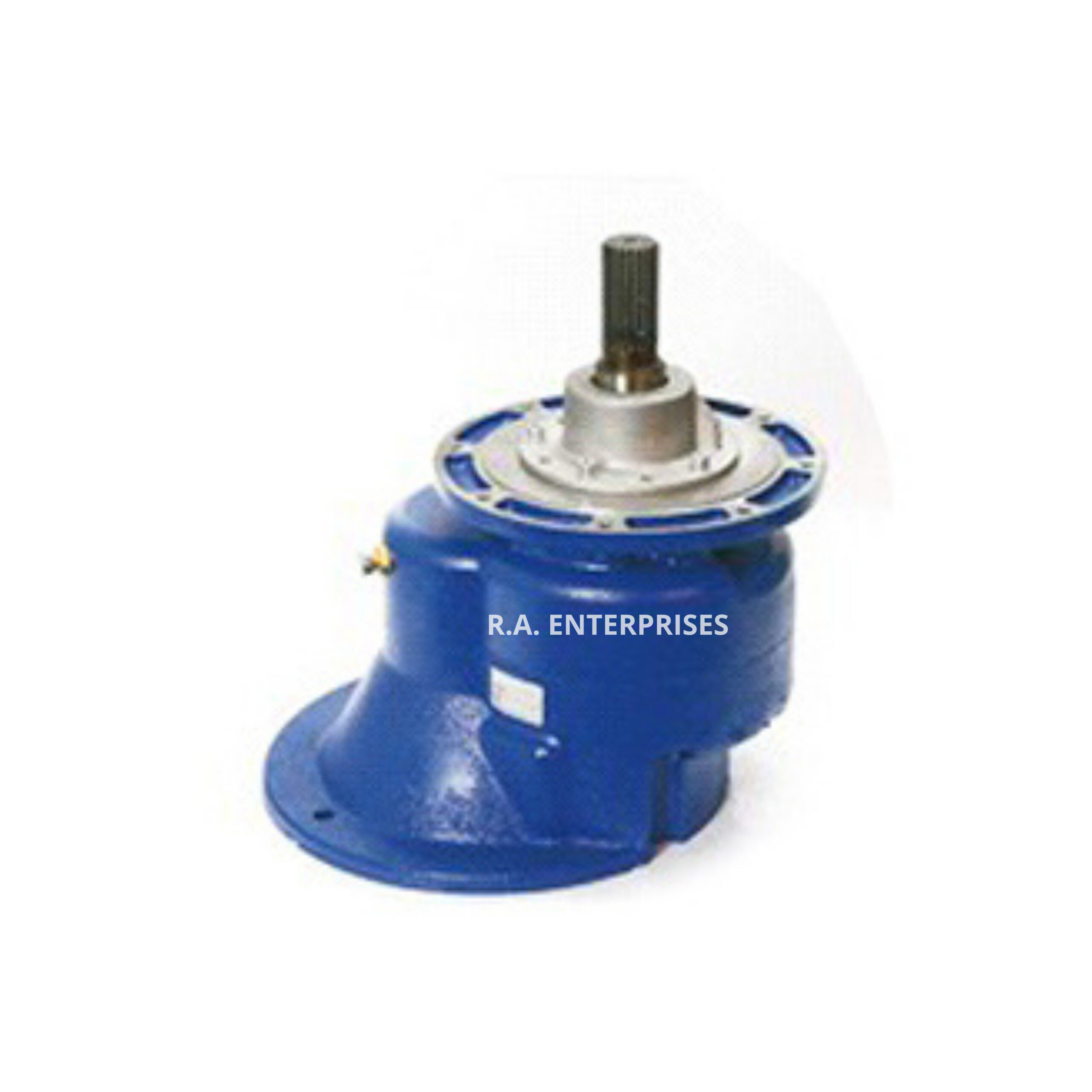

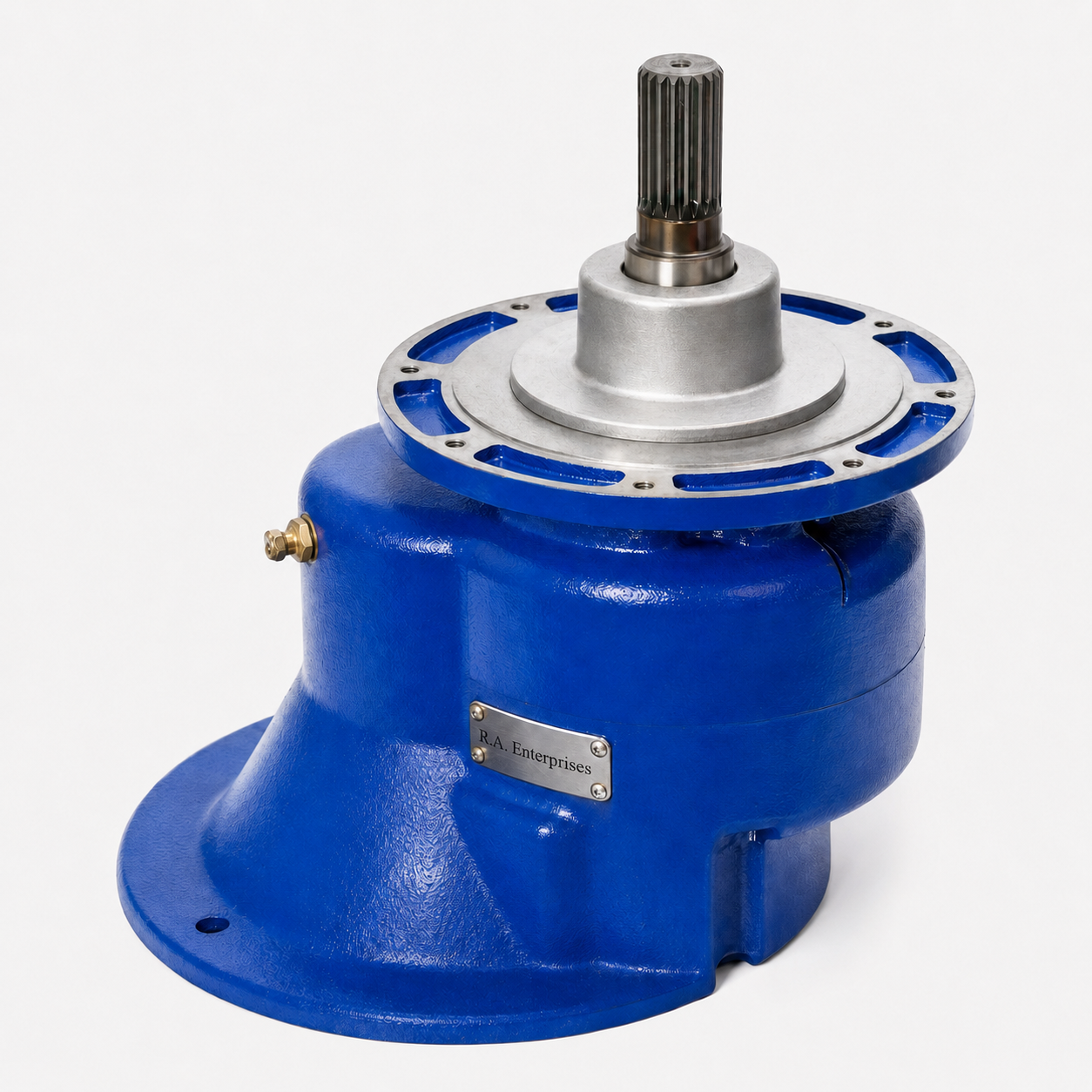

The Screw Conveyor Gear Reducer is a high-performance gearbox
designed for efficient material feeding and conveying in systems
handling cement, filler dust, and other bulk materials in batching
plants.
Key Features and Advantages
- Available Models: GB45, GB47, GB49
- Compatible with screw conveyors of 168, 219, 273, and 323 mm sizes
- Designed for smooth and efficient power transmission
- CSF and FSF models are interchangeable with standard gear reducers
- Heavy-duty construction for industrial applications
- Suitable for continuous operation in batching and conveying systems
- Ensures reliable toraue and long service life
Screw Conveyor Geared Motor / Gear Reducer overview
R.A. Enterprises supplies geared motors and gear reducers for screw conveyor applications. The drive system converts motor speed into the lower output speed and higher torque required by the screw conveyor. Correct selection depends on required screw speed, material load, conveyor diameter, length, inclination, starting conditions, duty cycle and mounting arrangement.
Function / Operating Principle
The electric motor provides rotational power while the reduction gearbox changes the input speed and torque to the output conditions required to drive the screw conveyor.
Construction
- Electric motor where supplied as geared motor
- Reduction gearbox
- Input and output shaft interfaces
- Mounting arrangement
- Coupling or drive connection as required
Key Features
- Speed reduction for screw conveyor drive
- Torque transmission to screw shaft
- Multiple gearbox arrangements available
- Selection according to duty and installation
Applications
- Cement screw conveyors
- Fly ash screw conveyors
- Powder handling conveyors
- Industrial bulk material equipment
Benefits
- Compact motor and reduction solution
- Correct output speed for conveying duty
- Application-based mounting options
- Suitable for industrial conveyor drives
Why Choose R.A. Enterprises?
R.A. Enterprises supplies screw conveyor drive components from Pune, Maharashtra and assists with selection based on conveyor technical requirements.
Technical Specification – Screw Conveyor Geared Motor / Gear Reducer
| Parameter | Technical Specification |
|---|---|
| Product Type | Geared motor / reduction gearbox |
| Application | Screw conveyor drive |
| Motor Power | Selected according to conveyor duty |
| Gear Ratio | As required for output speed |
| Output Speed | Application dependent |
| Output Torque | As per calculated conveyor requirement |
| Mounting | Foot / flange / shaft arrangement as applicable |
| Electrical Supply | As per selected motor and site supply |
| Service Duty | Selected according to application |
Enquire Now
Frequently Asked Questions
What is a geared motor?
A geared motor combines an electric motor and reduction gearbox to provide the output speed and torque required by driven equipment such as a screw conveyor.
Why is a gearbox used on a screw conveyor?
The gearbox reduces motor speed and increases available output torque so the screw can rotate at a suitable conveying speed under load.
How is screw conveyor motor power selected?
Power should be calculated from conveyor size, length, inclination, material characteristics, capacity, starting condition, speed and service duty.
How is gear ratio selected?
The gear ratio is selected from motor speed and the required screw conveyor output speed while also verifying available output torque.
Can any geared motor be used on a cement screw conveyor?
No. The drive must be selected for the actual conveyor torque, speed, mounting and duty requirements.
Can the same gearbox be used for fly ash?
Possibly, but selection must be verified because material load, conveyor configuration and operating duty can differ.
What mounting options are available?
Depending on the gearbox design, common industrial arrangements include foot, flange or shaft-mounted configurations.
Can I replace an existing geared motor?
Yes, after confirming motor power, output speed, torque, gearbox ratio, shaft dimensions, mounting arrangement and electrical supply.
What details should I send for replacement?
Provide the existing nameplate photograph, motor power, gearbox ratio, output speed, mounting dimensions, shaft size and conveyor application.
What happens if the gearbox is undersized?
An undersized drive may experience overload, overheating, excessive wear or premature failure and may not start the loaded conveyor reliably.
Is higher motor power always better?
No. Drive selection should match the calculated requirement. Oversizing can increase cost and may affect mechanical protection or system design.
Can geared motors be supplied with different voltages?
Motor electrical configuration depends on the selected manufacturer and model and should match the available site electrical supply.
Can you help select a screw conveyor gearbox?
Selection support can be provided when sufficient conveyor dimensions, material details, required capacity, screw speed and duty information are available.
Do you supply geared motors in Pune?
R.A. Enterprises supplies screw conveyor drive and mechanical components from Pune, Maharashtra for industrial material handling applications.
Can you supply gear reducers across India?
Yes. Suitable geared motors and gear reducers can be supplied across India subject to technical selection and availability.
