Bulker Feeding System
Cement Bulker Unloading And Silo Feeding System Over view
R.A. Enterprises provides cement bulker unloading and silo feeding systems for transferring bulk cement from road tankers or bulkers into storage silos. A complete arrangement can include the filling pipeline, bulker connection, silo inlet, venting dust collector, pressure protection, level monitoring and control interlocks according to the project requirement.
Function / Operating Principle
During unloading, cement is conveyed from the bulker through the silo filling line. Displaced air is handled by the silo venting system while level and pressure protection components support controlled filling.
Construction
- Bulker-to-silo filling pipeline
- Inlet and connection fittings
- Silo filling connection
- Support structure and pipe supports
- Provision for safety and monitoring accessories
Key Features
- Designed for bulk cement unloading
- Customized pipeline routing
- Integration with silo dust collector
- Pressure and level monitoring provision
- Suitable for new or selected retrofit projects
System Integration
- Cement storage silo
- Silo dust collector
- Pressure relief valve
- High-level indicator
- Silo control and alarm system
Applications
- RMC plants
- Concrete batching plants
- Precast plants
- Dry mortar plants
- Bulk cement storage facilities
Benefits
- Organized bulker-to-silo transfer arrangement
- Integrated silo filling components
- Customized to available plant layout
- Supports cleaner and controlled filling operation
Why Choose R.A. Enterprises?
R.A. Enterprises manufactures silo systems, piping and bulk material handling equipment in Pune, Maharashtra and provides customized project support for customers across India.
Key Features
- High-performance unloading system for bulk materials
- Precision-engineered, robust and durable design
- Low-pressure operation for safe and efficient discharge

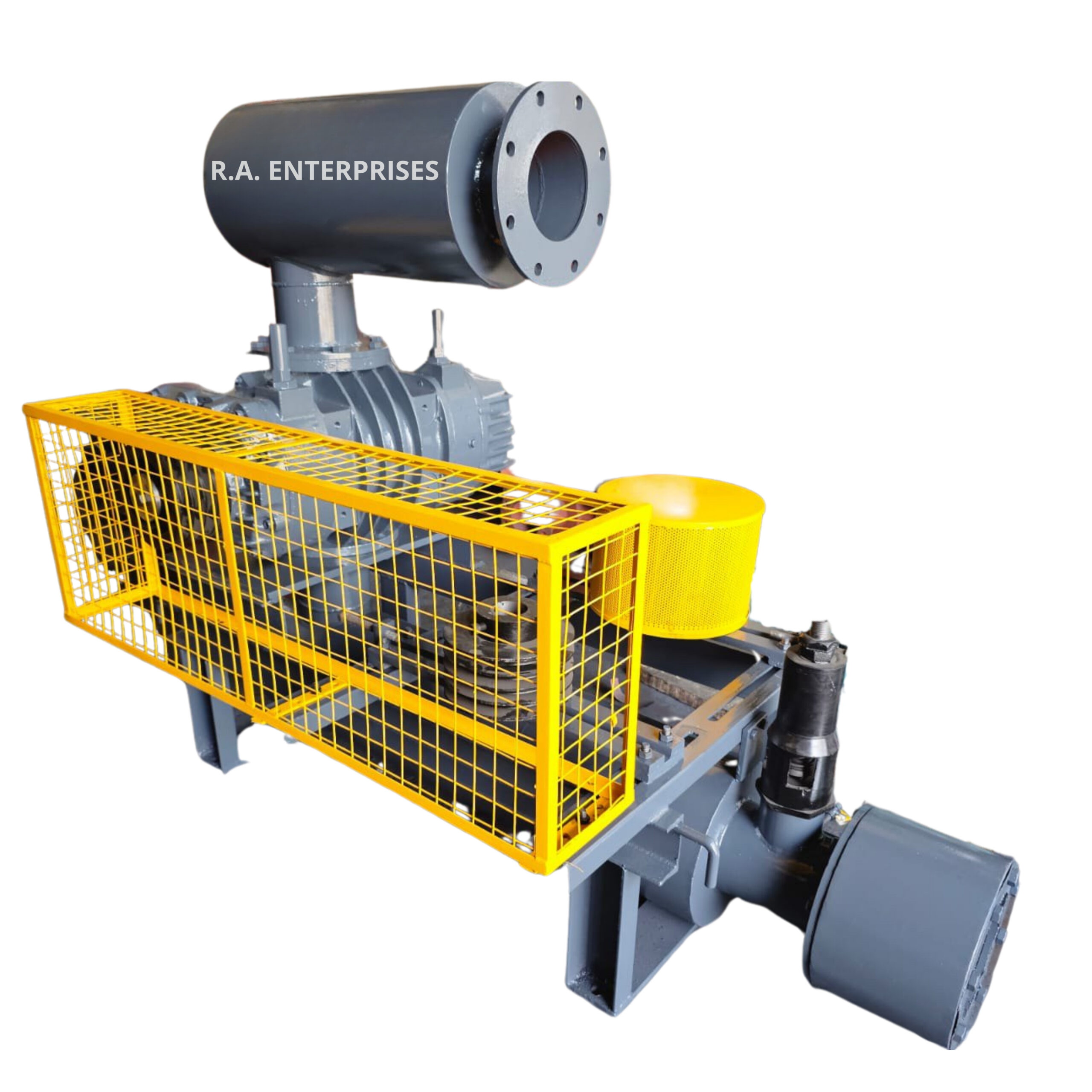

- Available with 40 HP / 50 HP / 60 HP high-efficiency electric motors
- High-volume unloading capacity for faster material handling
- Advanced electrical control panel (optional) for smooth operation
- Manual operated butterfly valves for main line and bulker unloading
- Reliable, low-maintenance system suitable for continuous use
Technical Specification – Cement Bulker Unloading And Silo Feeding System
| Parameter | Technical Specification |
|---|---|
| System Type | Bulk cement tanker / bulker to silo filling system |
| Material | Cement or compatible material as approved |
| Transfer Arrangement | As per bulker and silo filling design |
| Pipeline Size | Project dependent |
| Pipeline Material | As per approved specification |
| Dust Control | Silo venting dust collector provision |
| Pressure Protection | Pressure relief arrangement as required |
| Level Monitoring | High-level indication / control as required |
| Customization | According to site and silo layout |
Typical Applications
- RMC plants
- Concrete batching plants
- Cement storage terminals
- Precast plants
- Dry mix plants
Enquire Now
Frequently Asked Questions
What is a cement bulker unloading system?
It is a system used to transfer bulk cement from a road tanker or cement bulker into a storage silo through a suitably designed filling connection and associated silo equipment.
How is cement transferred from the bulker to the silo?
The bulker's unloading arrangement conveys cement through the connected filling line into the silo. The exact operating method depends on the tanker and project design.
Why is a dust collector required during silo filling?
As cement enters the silo, displaced air must leave the vessel. A suitable silo venting dust collector separates entrained dust from this air stream.
Why is a pressure relief valve required?
A pressure relief valve provides a separate protective function for abnormal silo pressure or vacuum conditions and is commonly incorporated in a properly engineered filling system.
Why is a high-level indicator used?
A high-level indicator detects when material reaches the selected upper level and can provide an alarm or filling interlock to reduce the risk of overfilling.
Can the system fill multiple silos?
Multi-silo filling arrangements can be designed using suitable pipe routing, valves and control interlocks to ensure material is directed to the intended silo.
Can the system be customized for an existing plant?
Yes, subject to inspection of existing silo connections, available space, access, structural supports and compatibility with the existing bulker unloading arrangement.
What pipeline size is required?
Pipeline diameter must be selected according to the bulker unloading arrangement, required transfer performance, line length, bends and site conditions rather than assumed generically.
Can fly ash be unloaded using a similar system?
A similar concept may be used for compatible bulk powders, but equipment selection and operating parameters must be evaluated for the actual material.
What accessories are normally associated with the system?
Depending on the project, associated equipment can include a silo dust collector, pressure relief valve, level indicator, filling pipe connection, alarms and control interlocks.
Can the filling system be automated?
Monitoring and interlocks can be automated when suitable valves, instruments and control panels are included in the project design.
What information is needed for quotation?
Provide silo dimensions, filling point, bulker connection details, site layout, pipe routing distance, number of silos, required accessories and existing plant information.
Is the system suitable for RMC plants?
Yes. Bulker-to-silo filling systems are commonly required at ready-mix concrete and batching plants that receive cement in bulk tanker deliveries.
Do you manufacture cement silo feeding systems in Pune?
R.A. Enterprises provides customized cement silo, filling and bulk material handling solutions from Pune, Maharashtra for industrial and concrete-production applications.
Can you supply bulker unloading systems across India?
Yes. R.A. Enterprises can supply customized cement bulker unloading and silo feeding equipment for projects across India according to approved specifications.
