Cement Hanger Bearing

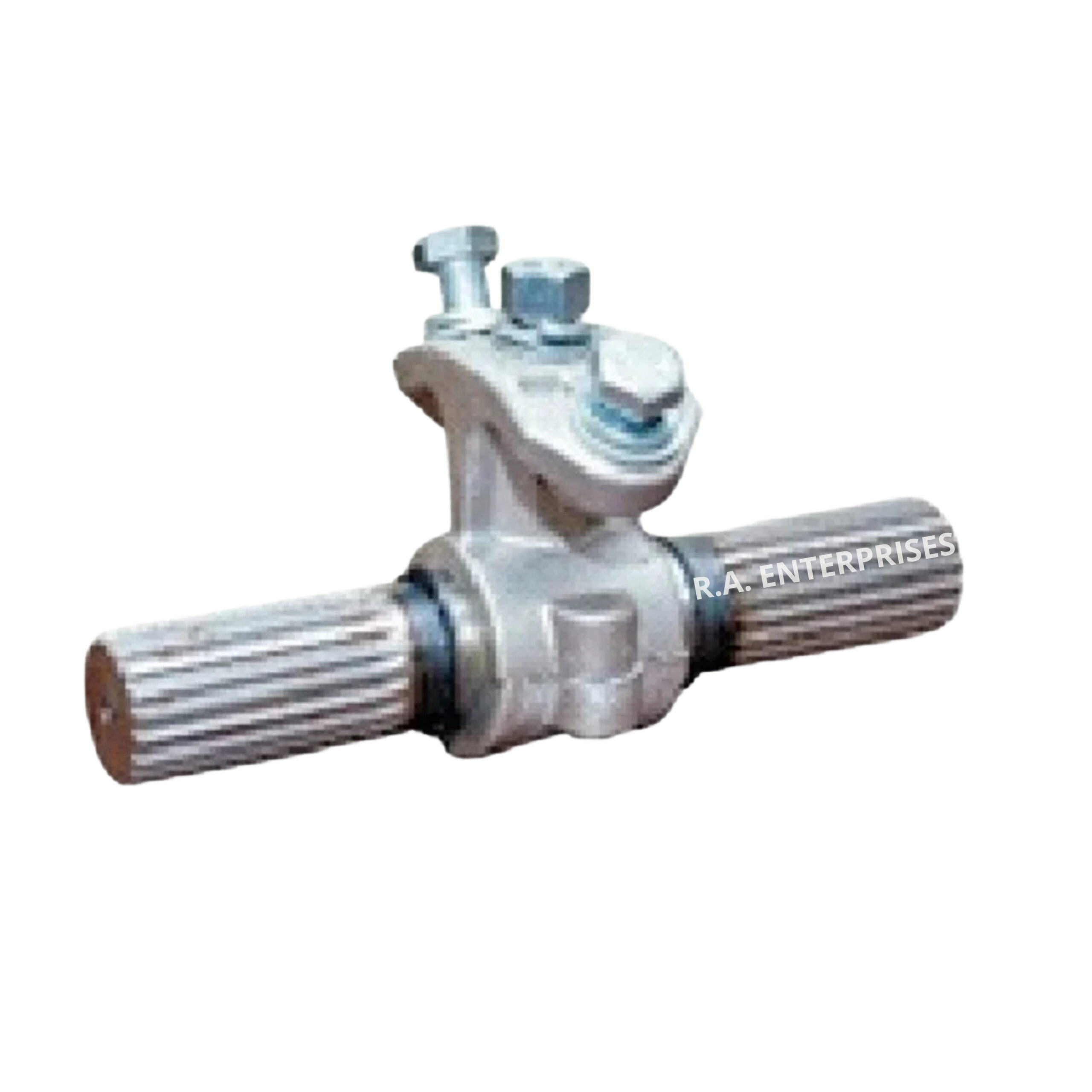

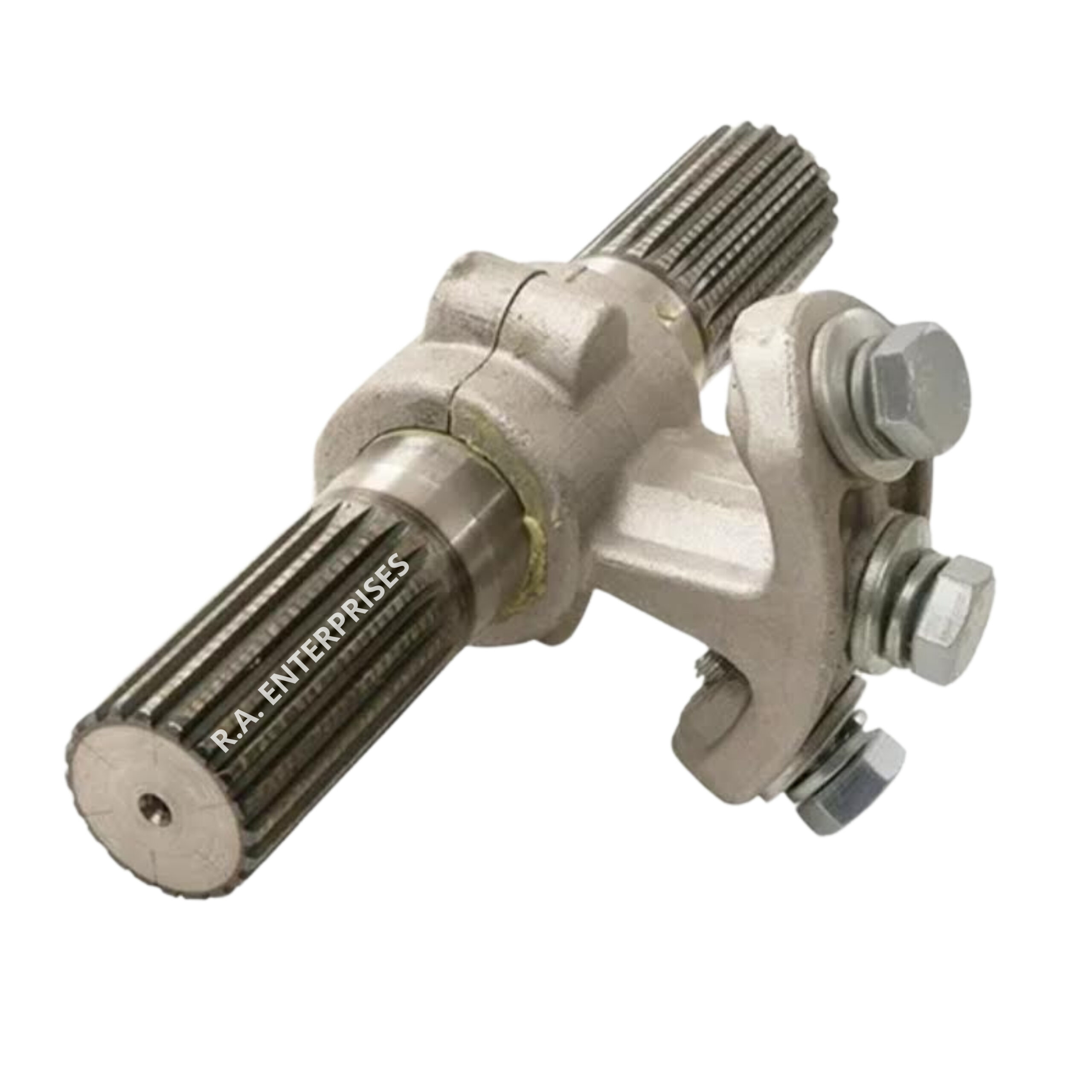

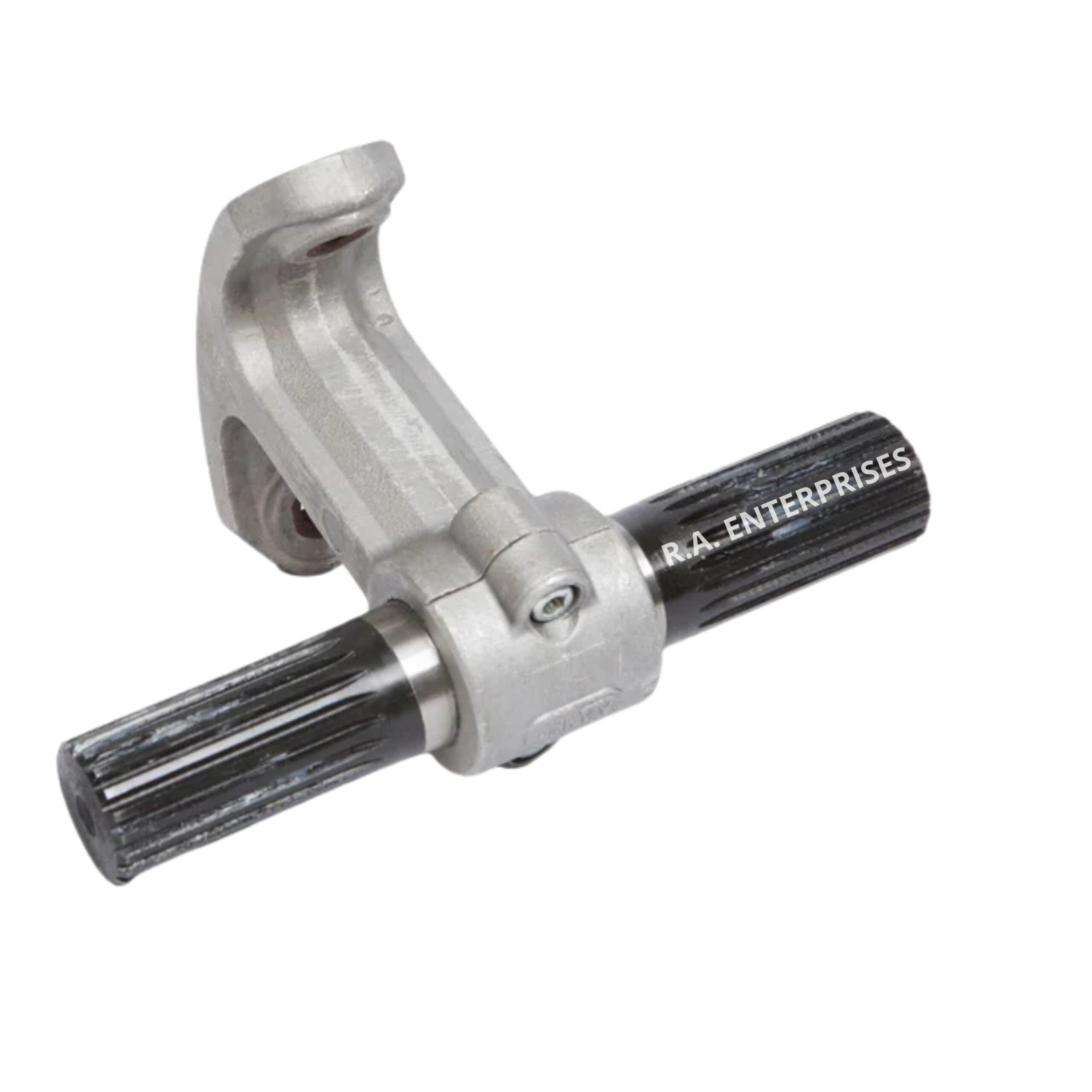

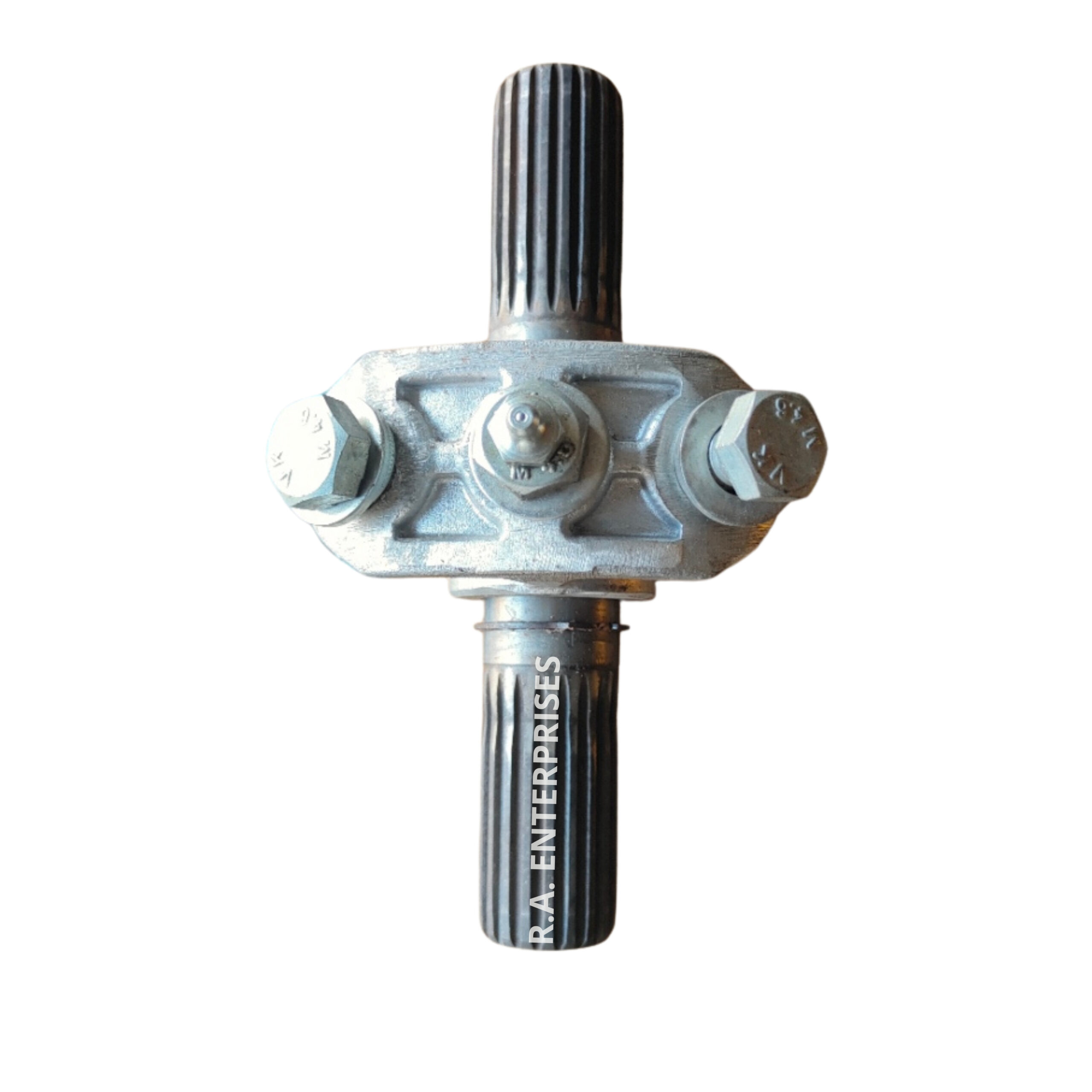

Cement Screw Conveyor Hanger Bearing Assembly Overview
R.A. Enterprises supplies cement screw conveyor hanger bearing assemblies for intermediate support and alignment of screw conveyor shafts. Hanger bearings are used in suitable multi-section screw conveyor arrangements where the internal screw requires support between end bearings. The assembly should match the conveyor diameter, shaft connection, hanger geometry, operating speed and cement handling conditions.
Function
The hanger bearing supports the intermediate screw shaft and helps maintain alignment and controlled rotation through longer or multi-section conveyor assemblies.
Construction
- Intermediate hanger support
- Bearing or bush arrangement as specified
- Shaft connection interface
- Mounting components
- Replaceable wear parts where applicable
Key Features
- Intermediate support for screw shaft
- Designed for screw conveyor integration
- Application-specific bearing or bush
- Serviceable component arrangement
- Replacement assemblies available as per drawing/sample
Applications
- Cement screw conveyors
- RMC plants
- Concrete batching plants
- Cement silo discharge systems
- Bulk cement handling equipment
Benefits
- Supports shaft alignment
- Helps control shaft deflection
- Suitable for multi-section screw conveyors
- Replaceable maintenance component
Why Choose R.A. Enterprises?
R.A. Enterprises supplies screw conveyor components from Pune, Maharashtra and can support replacement requirements based on approved dimensions, drawings or samples.
Technical Specification – Cement Screw Conveyor Hanger Bearing Assembly
| Parameter | Technical Specification |
|---|---|
| Product Type | Intermediate screw conveyor hanger bearing assembly |
| Application | Cement screw conveyor |
| Conveyor Diameter | As per conveyor model / drawing |
| Shaft Size | As per approved dimensions |
| Bearing / Bush | As per selected design |
| Housing Material | Model dependent |
| Mounting | Intermediate internal conveyor support |
| Replacement | Available as per drawing/sample where applicable |
Typical Applications
- Cement screw conveyors
- Silo discharge conveyors
- Batching plants
- RMC plants
Cement Hanger Bearing is designed to provide reliable shaft support in screw conveyor systems, ensuring smooth operation, reduced wear, and long-lasting performance in cement handling applications.
Enquire Now
Frequently Asked Questions
What is a screw conveyor hanger bearing?
A hanger bearing is an intermediate support positioned inside suitable screw conveyors to support the screw shaft between end bearings and help maintain alignment.
Why is a hanger bearing required?
Long or multi-section screw assemblies may require intermediate support to limit shaft deflection and maintain the intended rotating alignment through the conveyor.
Where is the hanger bearing installed?
It is installed at an intermediate position within the conveyor casing where adjoining screw sections or shafts require support according to the conveyor design.
Is every screw conveyor fitted with a hanger bearing?
No. Requirement depends on conveyor length, design, shaft arrangement and manufacturer configuration. Some screw conveyors do not require intermediate hanger bearings.
Can the assembly be used for cement?
Yes, suitable hanger bearing assemblies are used in cement screw conveyors when the component is designed for the actual conveyor and material conditions.
What bearing material is used?
Bearing or bush construction varies by conveyor design. The existing component specification or approved drawing should be used for replacement selection.
How do I select the correct hanger bearing?
Provide conveyor diameter, shaft dimensions, hanger dimensions, bearing or bush details, operating arrangement and preferably an existing drawing or sample.
Can you manufacture a replacement from a sample?
Replacement components may be produced or sourced from a verified sample or drawing when all critical dimensions and material requirements can be established.
What causes hanger bearing wear?
Wear can result from material abrasion, misalignment, inadequate component selection, contamination or operating conditions. Inspection of the complete conveyor is recommended when repeated wear occurs.
How often should the hanger bearing be inspected?
Inspection frequency depends on operating hours, material abrasiveness and conveyor duty. It should be included in the plant's preventive maintenance program.
Can incorrect alignment damage the hanger bearing?
Yes. Misalignment can increase friction, wear and loading on the bearing or bush and may also affect screw rotation and other conveyor components.
Can the hanger bearing be supplied as a complete assembly?
Complete assemblies can be considered according to the required housing, support, shaft interface, bearing or bush and associated hardware.
Is it suitable for RMC plant cement conveyors?
Yes, appropriately selected hanger bearing assemblies can be used in cement screw conveyors serving concrete batching and RMC plants.
Do you supply screw conveyor hanger bearings in Pune?
R.A. Enterprises supplies screw conveyor components from Pune, Maharashtra for cement and industrial bulk material handling applications.
Can you supply hanger bearings across India?
Yes. R.A. Enterprises can supply suitable screw conveyor hanger bearing assemblies across India subject to dimensional and technical confirmation.
