Dust Collector Cartridge Filter Elements
Dust collector cartridge filter elements are replaceable filtration components used inside silo-top and ground-mounted dust collectors to separate fine airborne dust from the exhaust air. Correct cartridge selection is important because the replacement element must physically fit the existing collector and suit the dust, operating conditions and cleaning arrangement of the system.
Where Cartridge Filter Elements Are Used
- Cement silo dust collectors
- Fly ash handling systems
- RMC and concrete batching plants
- Powder storage and dry bulk material systems
- Silo-top and ground-mounted dust collectors
These elements may be required for routine maintenance, breakdown replacement or planned servicing of an existing dust collector.
When to Replace a Cartridge Filter
- The existing filter element is damaged
- The cartridge is heavily loaded with dust
- The filter has become difficult to clean effectively
- The element is physically deformed
- Dust collection performance is no longer satisfactory
Before replacement, the cleaning system, seals, mounting arrangement and dust collector housing should also be checked so the replacement element is selected for the actual operating requirement.
Information Required for Correct Filter Selection
- Overall cartridge length
- Outside diameter
- Inside diameter or mounting dimensions, where applicable
- Clear side, top and bottom photographs of the existing cartridge
- Dust collector make or model, if available
- Existing filter media or cartridge reference, if known
- Material handled, such as cement, fly ash or another dry powder
- Dust collector type and cleaning arrangement
- Required quantity
If the model or specification is not available, you can share the old cartridge sample or clear dimensional photographs for review.
How to Request the Correct Replacement Filter
- Measure the existing cartridge carefully.
- Take clear photographs of the cartridge and its mounting ends.
- Share the dust collector model or nameplate details, if available.
- Mention the material being handled.
- Share the required quantity and submit the details through the enquiry form on this page.
Key Features
- High-efficiency pleated polyester media with ≥ 99.9% filtration
- Compatible with Cosben & WAM dust collectors
- Filter area: 1.4 - 1.8 m² per cartridge

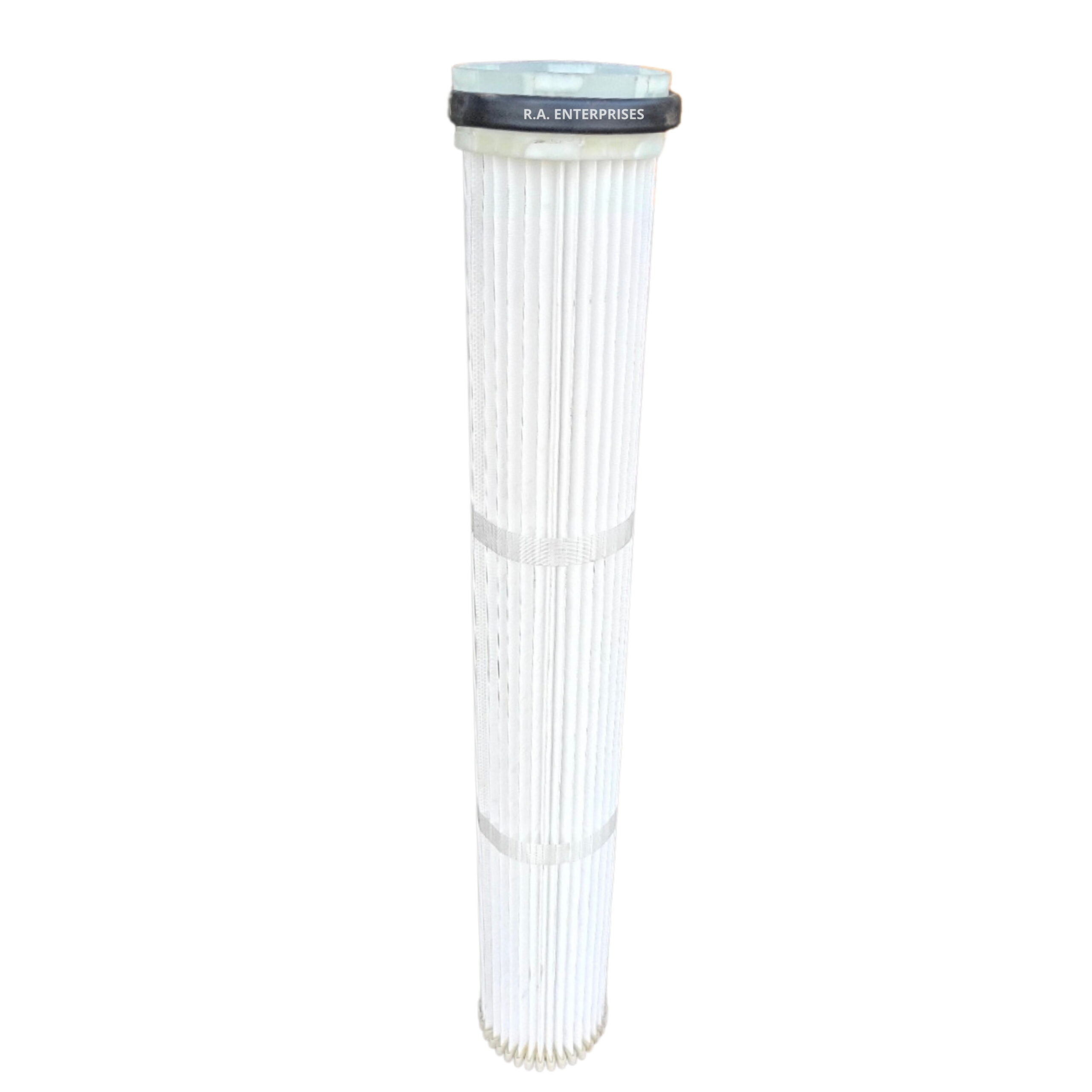

- Available lengths: 660 / 800 / 1000 mm
- Media options: Polyester Spunbond / Anti-static / PTFE
- Temperature resistance up to 120°C

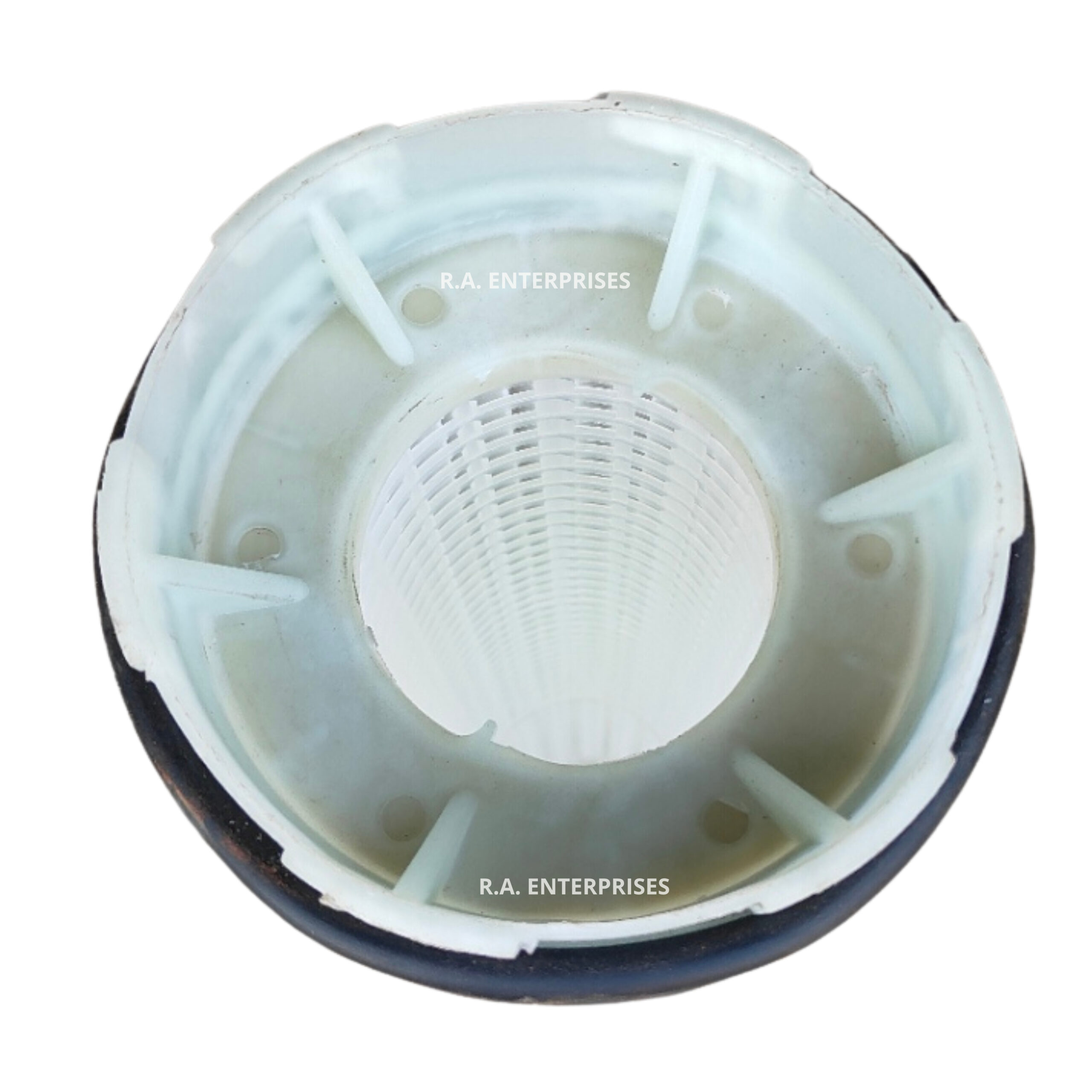

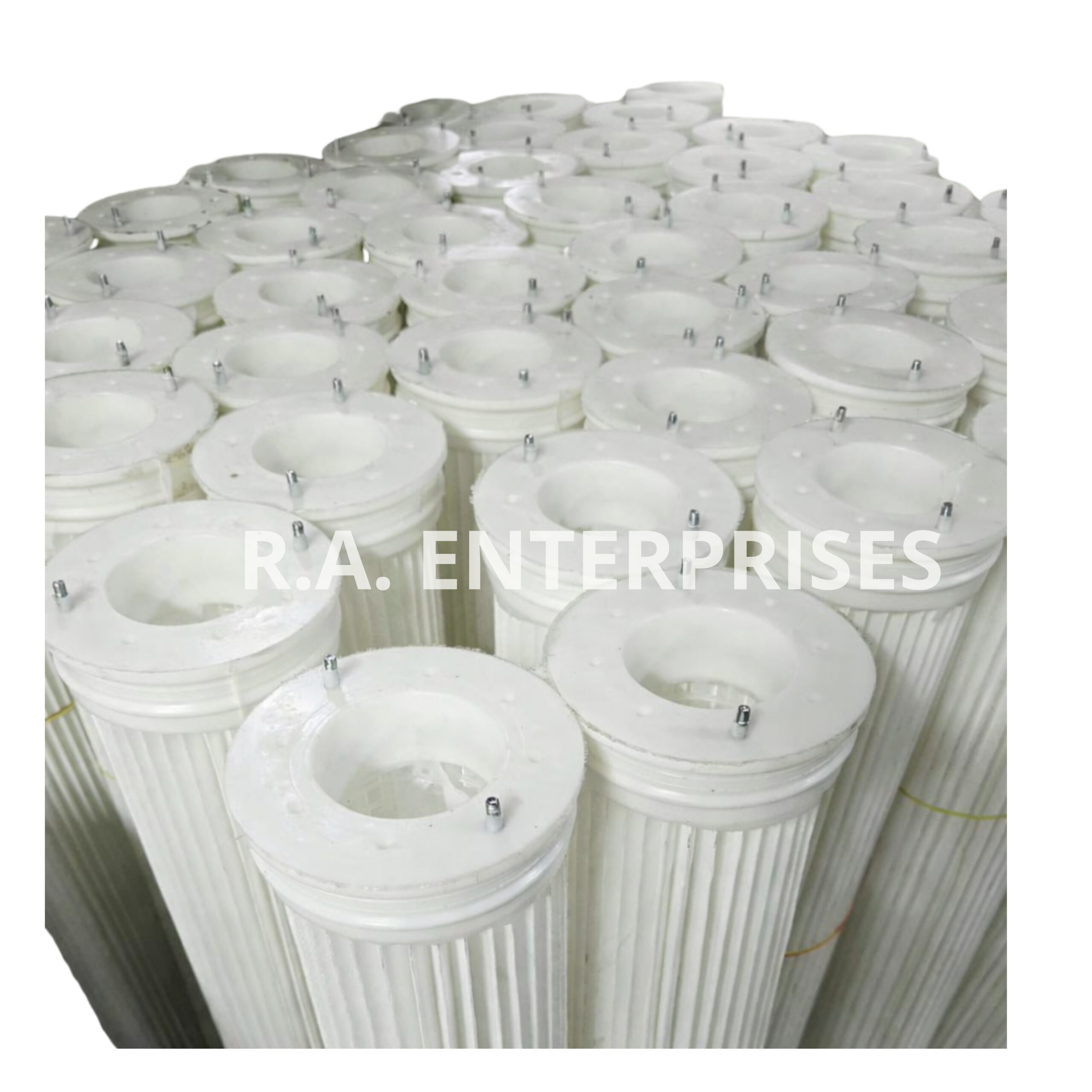

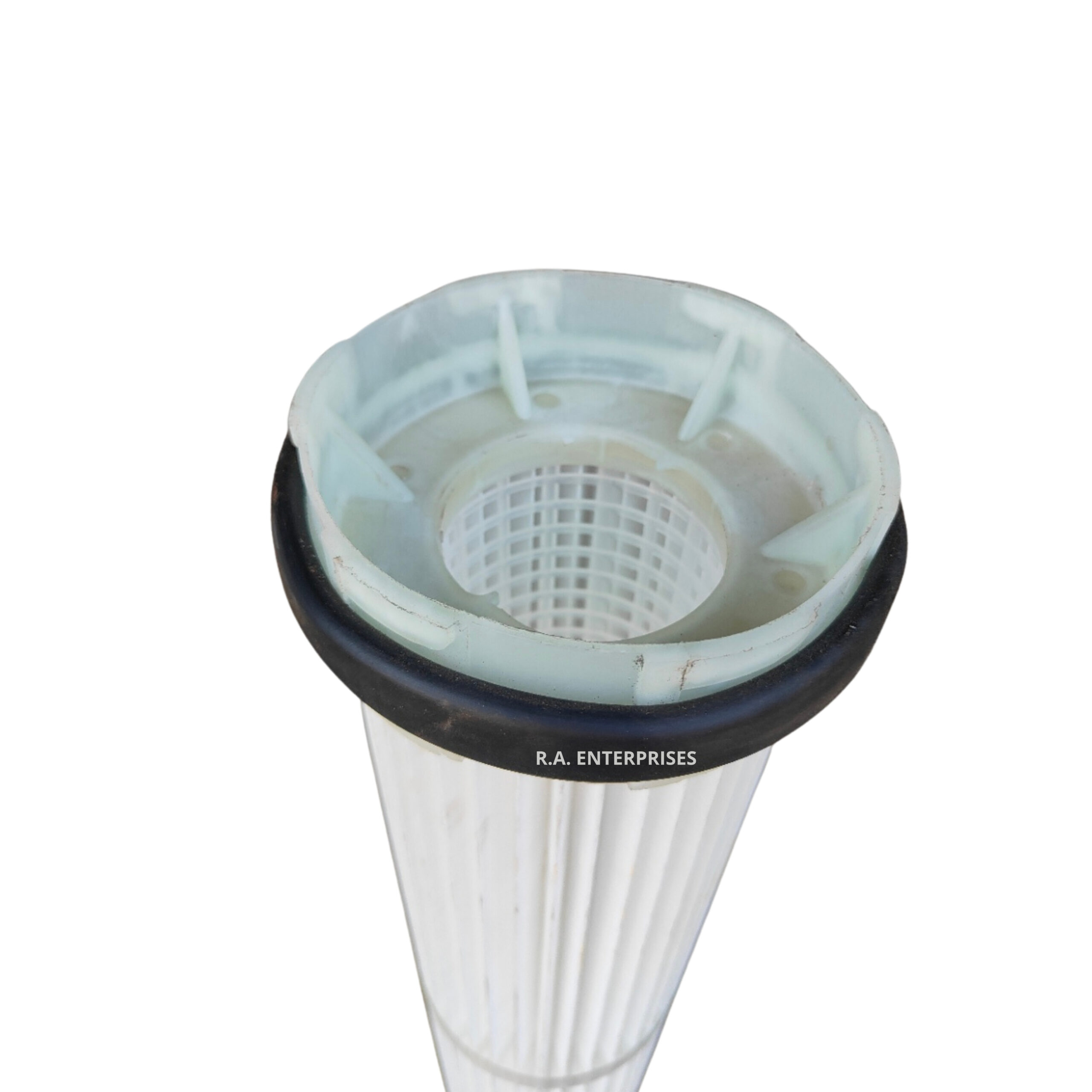

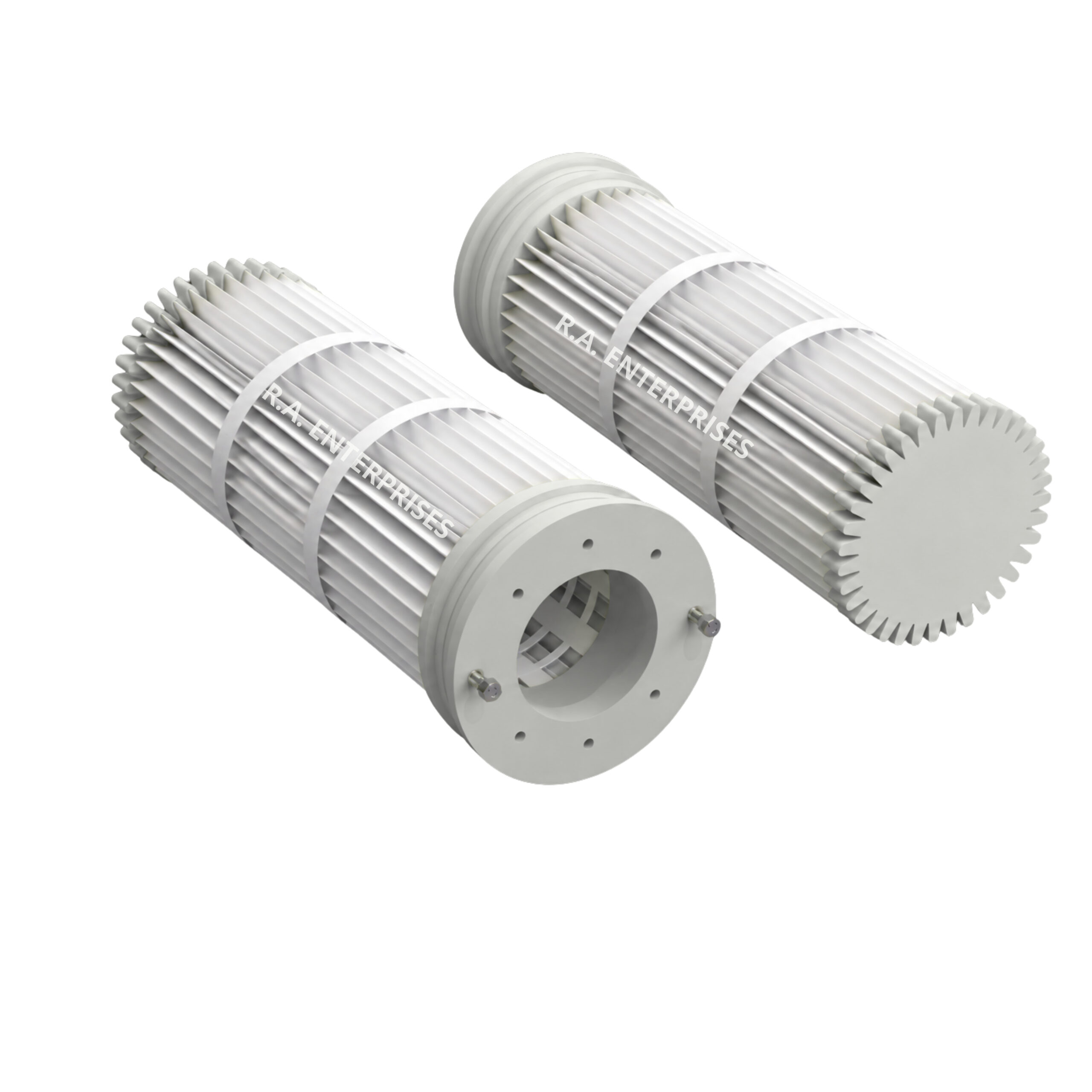

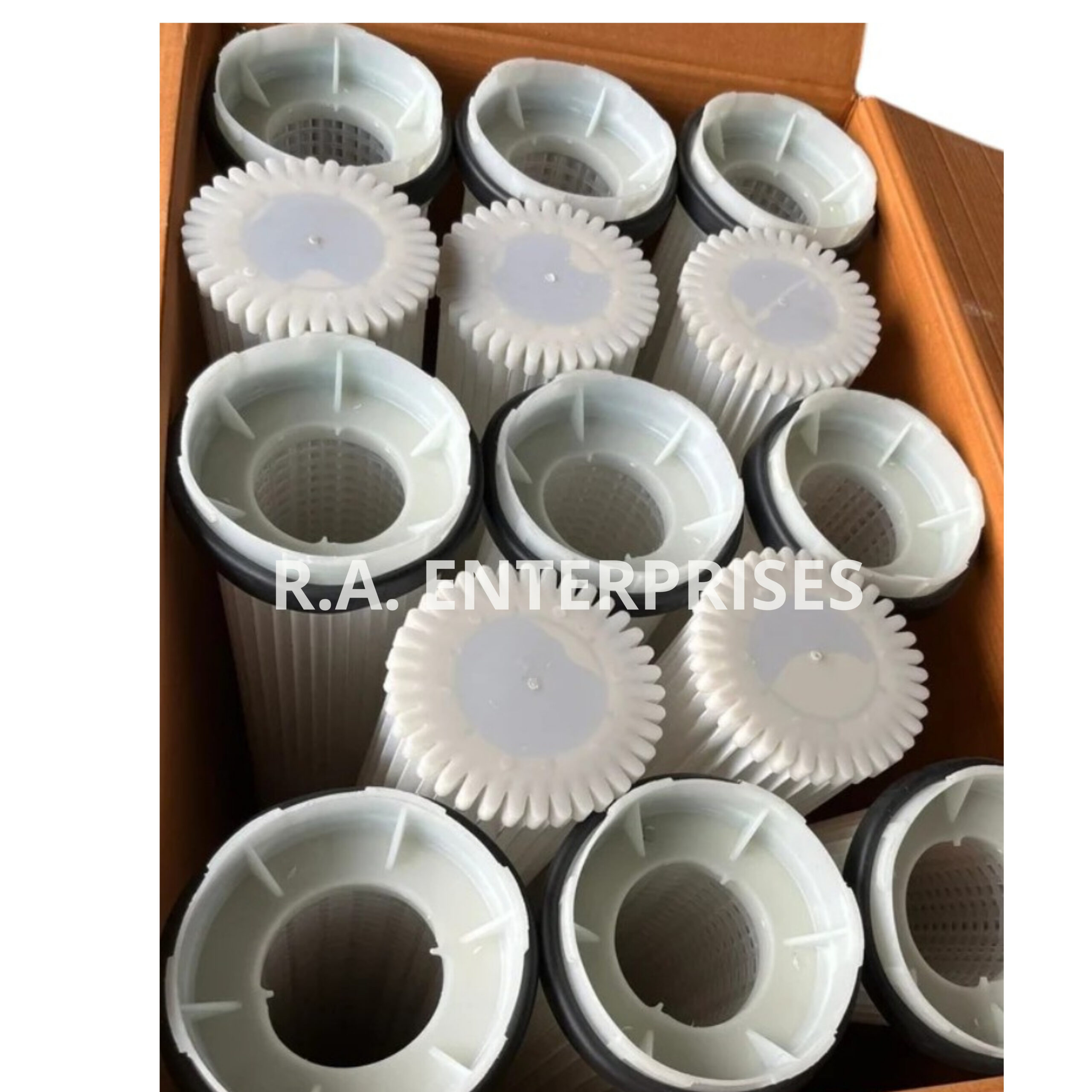

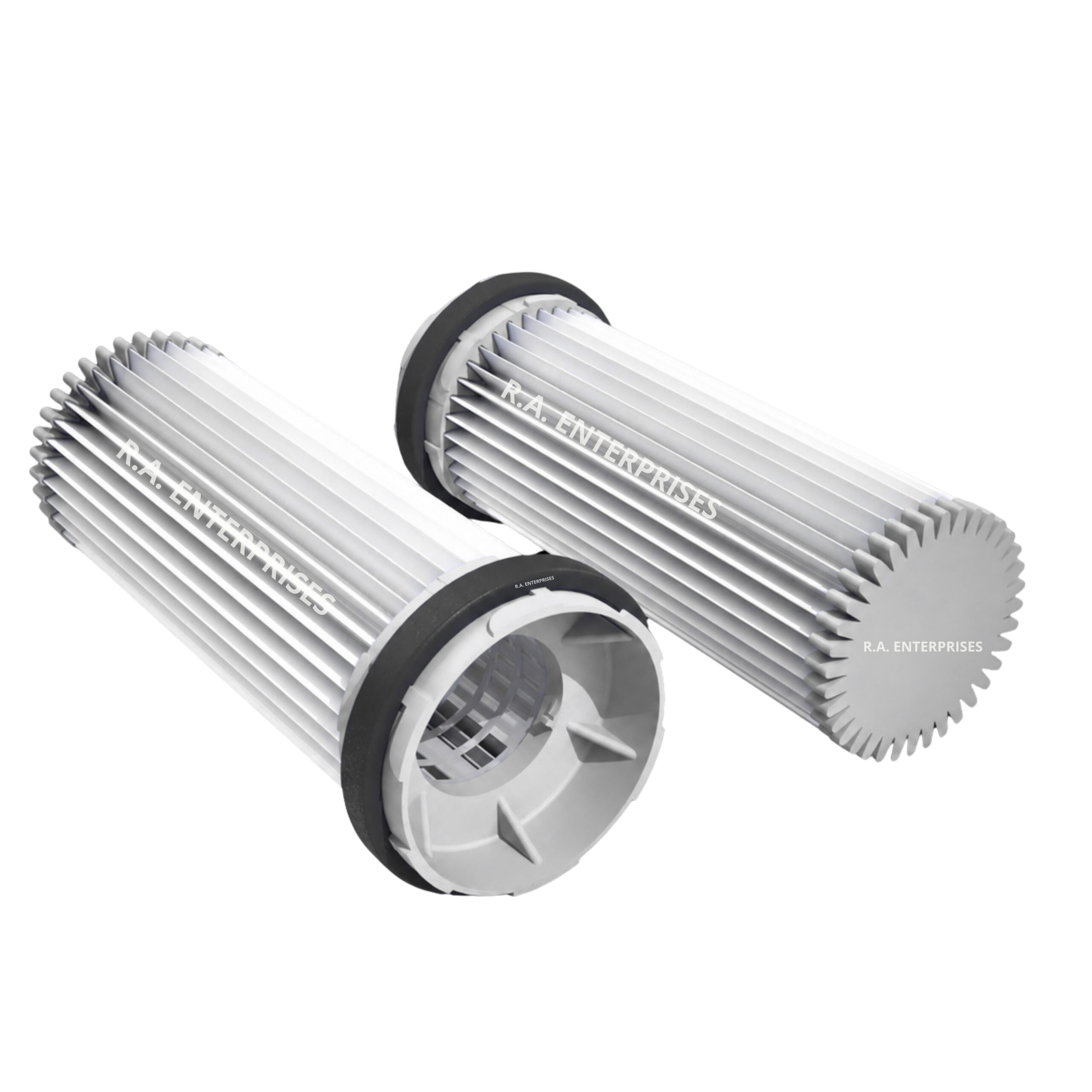

- Mounting: Snap-on / Clamp / Threaded type
- Suitable for cement silos, RMC plants, batching systems, and fly ash handling
- Designed for pulse jet and vibration cleaning systems
Enquire Now
By submitting this form, you agree to our Privacy Policy.
Frequently Asked Questions
What is a dust collector cartridge filter element?
A dust collector cartridge filter element is a replaceable filtration component used inside a dust collector to retain fine dust while allowing filtered air to pass through the system.
Where are cartridge filter elements commonly used?
They are commonly used in silo-top and ground-mounted dust collectors serving cement silos, fly ash systems, RMC plants, concrete batching plants and other dry bulk powder handling applications.
Is the cartridge filter element available in stock?
Yes. R.A. Enterprises currently has cartridge filter elements in stock. Please confirm the required dimensions, media, quantity and mounting arrangement before order finalization.
What information should I send for replacement filter selection?
Please share the overall length, outside diameter, inside or mounting dimensions where applicable, clear side/top/bottom photographs, dust collector make or model if available, material handled, cleaning arrangement and required quantity.
Can this filter be used in a cement silo dust collector?
It can be considered for cement silo dust collector applications when the cartridge dimensions, mounting arrangement, filter media and operating conditions match the existing system.
Can cartridge filter elements be used for fly ash applications?
Yes, they can be selected for compatible fly ash dust collection applications. The filter media and final configuration should be confirmed according to the actual dust characteristics and operating conditions.
Can you supply a replacement for my existing cartridge filter?
Yes. Replacement requirements can be reviewed using the existing cartridge dimensions, photographs, model details or old sample. Final compatibility should be confirmed before supply.
Can I send an old cartridge sample for matching?
Yes. If the model or technical drawing is not available, an old sample or clear dimensional photographs can help identify the required replacement configuration.
What filter media options are available?
The current page lists Polyester Spunbond, Anti-static and PTFE media options. The suitable media should be selected according to the material handled and operating requirement.
How do I confirm the correct mounting type?
Share clear photographs of the top and bottom ends of the existing cartridge along with mounting dimensions. This helps review whether the required arrangement is snap-on, clamp, threaded or another compatible type.
What should I check before replacing the cartridge?
Check the existing filter condition, cleaning system, seals, mounting arrangement and dust collector housing. Replacing only the filter may not solve a problem if another part of the dust collector requires attention.
How can I get a quotation for cartridge filter elements?
Submit the required dimensions, photographs, material handled, dust collector details and quantity through the enquiry form on this page. R.A. Enterprises can review the information and provide a quotation based on the confirmed requirement.
Do you supply cartridge filter elements across India?
Yes. R.A. Enterprises supplies industrial dust collector components for confirmed requirements across India, subject to technical confirmation and commercial terms.
